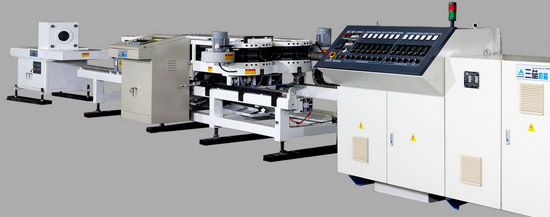

PVC Corrugated Pipe Extrusion Line

PVC double wall corrugated pipes are used for drainage, wastewater and sewage. Sunlight manufactures machines for producing PVC corrugated pipes with diameters of 90mm up to 1000mm.The complete line is operated and controlled by a automation system, which enables customers to produce the highest quality.

Pipe Diameter(mm)  Extruder Forming machine  Total power(kW)
 500-1000  SJSZ95  SBZ1000  410
 200-500  SJSZ92  SBZ500  230
 63-250  SJSZ80  SBZ250  189
 63-160  SJSZ65  SBZ160  140



60-160mm OD pvc double wall corrugated pipe extrution line.

  Pipe diameter   Configuration of production line
 Equipment name  Specification  Quantity
      63-160  Twin screw extruder  SJSZ-65  1
 Die head and mandrel and mould  63-160  1
 Forming machine  SBZ160A  1
Cutting saw  SQG160A  1
Automactic belling machine  SBK2063  1
Belling moulds  Ø63-Ø160  1


Φ63-Φ250mm/200-500mm OD pvc double wall corrugated pipe extrution line

Pipe diameter (mm)
Twin screw extruder Forming machine Planetary saw Automatic belling machine Belling moulds
 63-250  SJSZ-80 SBZ250
QG250
SBK250A
Ø63-Ø250
200-500
 SJSZ-92 SBZ500
QG5020
SBK5020A
Ø200-Ø500


500-1000mm OD pvc double wall corrugated pipe extrution line

Pipe diameter

mm
Twin screw extruder Forming machine Planetary saw
Automatic belling machine Belling moulds
 500-1000 SJSZ-95 SBZ1000
QG9030 SBK1000 Ø500-Ø1000
