LN series

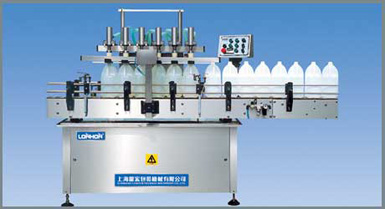

LN 1-Gallon Bottle Filling Production Line

SPECIFICATIONS

Product model 1 gallon linear filling & capping machine Product model Linear continuously sterilizing & rinsing machine
Capacity 1200 B/H
Capacity 1200 B/H
Filling volume 4 L
Bottle type bottles such as PVC, PP, PET, etc.
Valve No. 6 Bottle dia D:60?200mm
Bottle size bottles such as PVC, PP, PET, etc. Bottle height 200?380mm
Filling accuracy 4L+2% Power 3.7KW
Pneumatic pressure 0.6?0.8MPa Water consumption 2.2 м3/min
Air consumption 50L/min Rinsing pressure >0.15 MPa
Water consumption 5 м3/min Dimensions(LxWxH) 6000x2000x1300мм
Power 3.34 kW
Weight ≈600kg
Dimensions(LxWxH) filling
machine:2500x680x1680mm

capping
machine:1200x540x1723mm

Weight ≈400 kg
