Loaders
Autoloaders are intended for the automatic serve of raw material in the loading hopper of basic equipment (plastic injection machine, extruder, blow molding machine et cetera). At the use of autoloader the labour intensiveness of machine-tool maintenance diminishes, the losses of raw material are minimized at loading, the cleanness of workplace is observed and the automatic trouble-free feed of machine-tool is provided.
|
 |

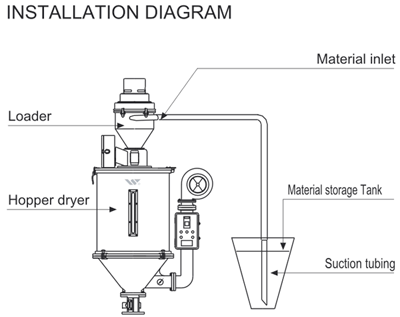

400G TYPE AUTO LOADER
- Small footprint & light, to be placed directly on other machine or container for auto loading.
- Microcomputer controlled.
- Alarm for overload and lack of material.
- High-speed rectificative motor of small footprint and strong suction force for new material for WSAL-300G.
- Induction high-pressure pump of low noise and long service time for WSAL-400G.
- Cable-control, easy to set and control.
- Filter available.
- With CE authentication.
|
 |
| Model |
WSAL-300G |
WSAL-400G |
| Motor |
1кВт/ 1ф |
1.75 кВт/
3ф |
| Conveying capacity(kg/h) |
300 |
330 |
| Loading distance(m) |
3.5 |
4 |
| Static wind pressure(mm/H2O) |
1300 |
1400 |
| Reservoir volume(L) |
7.5 |
10 |
| Conveying tube inner dim(mm) |
Ø38 |
Ø38 |
| Specification of the attached hoses(mm) |
Ø38ммx3.5м
1 шт. |
Ø38ммx4м
1 шт. |
| Dimensions(cm) |
34x34x59 |
45x37x66 |
| Net weight(kg) |
12 |
27 |
|
 |
700G AUTO LOADERS
- Host machine separated from the hopper, easy and safe to operate.
- Independent filter for easy cleaning.
- Stainless hopper.
- Microcomputer controlled.
- Alarm for overload and lack of material.
- High-speed rectificative motor of small footprint and strong suction force for new material for WSAL-700G.
- Induction high-pressure pump of low noise and long service time for WSAL-800G & WSAL-800G2.
- Reverse cleaning for WSAL-800G & WSAL-800G2.
- With CE authentication.
|
 |
| Model |
WSAL-700G |
WSAL-800G |
WSAL-800G2 |
| Motor |
Type |
Carbon brush |
induction |
induction |
| Specification |
1KW/1.3HP
1φ |
1.1KW/1.5HP
3φ |
2.2KW/3HP
3φ |
| Conveying capacity(kg/h) |
310 |
450 |
590 |
| Loading distance(m) |
4 |
4 |
5 |
| Static wind pressure(mm/H2O) |
1550 |
1800 |
2500 |
| Reservoir volume(L) |
6 |
10 |
10 |
| Conveying tube inner dim(mm) |
Ø38 |
Ø38 |
Ø38 |
| Specification of the attached hoses(mm) |
Ø38mmx4m
2pcs |
Ø38mmx4m
2pcs |
Ø38mmx5m
2pcs |
| Dimensions(cm) |
Main frame |
37x30x56 |
42x38x64 |
50x40x72 |
| Hopper |
28x34x43 |
45x32x45 |
45x32x45 |
| Net weight(kg) |
Main frame |
14 |
47 |
66 |
| Hopper |
6 |
6 |
10 |
|
