Automatic paper pulp moulding product line

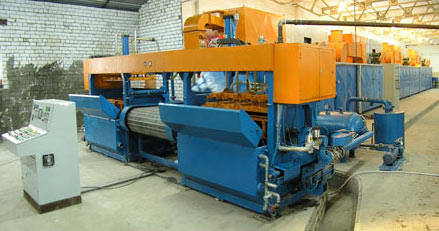

ZMG-B series automatic paper pulp moulding product line applies ZMG-B series turning forming machine ,which is turning to move so that it can be used for forming mould of all kinds of shape;and it also has the shower to keep the equipment clean ;the transfer mould moves up-down and forward-backward,which can convey the product gently to the net strip for the drier,in this case ,the product will not easy to distort in the process . The drier can apply to several kinds of heat ways such as gas , diesel oil,steam,heat transfer oil,coal and so on according to the demand of the customer .The features of this series of the product line consist of advanced structure , complete function ,high automatization ,esay operation and maintenance, larger application range and so forth. The turning forming machine is the equipment that has more advanced structure and the most complete functions .

Technical Specifications

 Model  ZMG-B2  ZMG-B3  ZMG-B4  ZMG-2B3  ZMG-2B4
Egg tray pcs(pcs/hr.)  600  900  1200  1600  2000
Max. output(kg/hr.)  70 90
 180  200
The whole product line power(kwh)  58  66  78  116  138
Electricity cost(kwh)  45 52
 62  87 105
Diesel oil cost(kg/hr.)  15  23 28
 33 38
Gas cost(cube/hr.)  19  29 35
 43 49
Steam cost(kg/hr.)  320  490 580
Water cost(litre /hr.) 300
 500  700  800
Staff  3  3 3
Forming machine movement periods  Egg tray:10-11 sec. Egg tray:10-11 sec. Egg tray:10-11 sec. Egg tray:12-13 sec. Egg tray:13-14 sec.
 other:10-30 sec. adjustable other:10-30 sec. adjustable other:10-30 sec. adjustable  other:11-30 sec. adjustable other:12-30 sec. adjustable
Forming machine board size(mm) 800x500
 1200x500 1600x500
 1200x500x2 1600x500x2
Mould  2 шт.  3 шт. 4 шт.
6 шт.
 8 шт.

Transfer mould

Transfer mould
Transfer mould  Transfer mould Transfer mould
Operation Control by PLC computer : run automatically
Common explaination 1. In the above form,the parameter of the cost of diesel oil,gas ,steam are          corresponding to different heat sources,the others are omitted .
   2. The pieces of the egg tray in the form are just for reference,different          product,different quantity and weight.

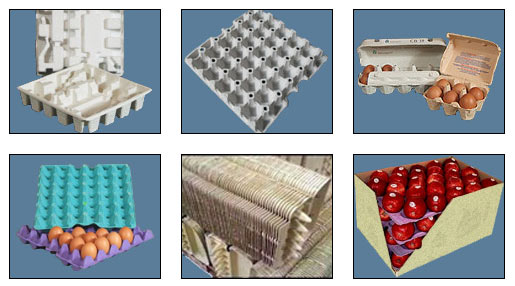

Paper pulp moulding product has good intensity and elasticity, and also is ventilated,  anti static, which can reduce the transport cost. What is more,i t can be recycled, which is good for environmental protection. So that, foam packaging is replaced by the paper pulp moulding product at present. And the application range has spreaded to many fields such as :egg tray, egg carton, fruit tray and industrial packaging of glassware,  apparatus t ool,  electrical appliances, accessory, and so on.  The paper pulp moulding product factory belongs to our company can produce all kinds of packaging product according to the demand of the customer.
